Hax-1 is required for Rac1-Cortactin interaction and ovarian carcinoma cell migration

This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

ABSTRACT

Hax-1 is a multifunctional protein, which is involved in diverse cellular signaling pathways including tumor cell survival and migration. We have shown previously that cell migration stimulated by the oncogenic G protein, G_13, requires Hax-1 for the formation of a functional complex involving Gα₁₃, Rac1, and cortactin. However, the role of Hax-1 in cancer cell migration or its role in Rac1-cortactin complex formation, which is known to be required for such migration remains to be characterized. Results focused on resolving the role of Hax-1 in ovarian cancer pathophysiology indicate that Hax-1 is overexpressed in ovarian cancer cells and the silencing of Hax-1 inhibits lysophosphatidic acid (LPA)- or fetal bovine serum-stimulated migration of these cells. In addition, silencing of Hax-1 greatly reduces Rac1-cortactin interaction and their colocalization in SKOV3 cells. Mapping the structural domains of Hax-1 indicates that it interacts with cortactin via domains spanning amino acids 1 to 56 (Hax-D1) and amino acids 113 to 168 (Hax-D3). Much weaker interaction with cortactin was also observed with the region of Hax-1 spanning amino acids 169 – 224 (Hax-D4). Similar mapping of Hax-1 domains involved in Rac1 interaction indicates that it associates with Rac1 via two primary domains spanning amino acids 57 to 112 (Hax-D2) and 169 to 224 (Hax-D4). Furthermore, expression of either of these domains inhibits LPA-mediated migration of SKOV3 cells, possibly through their ability to exert competitive inhibition on endogenous Hax-1-Rac1 and/or Hax-1-cortactin interaction. More significantly, expression of Hax-D4 drastically reduces Rac1-cortactin colocalization in SKOV3 cells along with an attenuation of LPA-stimulated migration. Thus our results presented here describe for the first time that Hax-1 interaction is required for the association between Rac1 and cortactin and that these multiple interactions are required for the LPA-stimulated migration of SKOV3 ovarian cancer cells.

INTRODUCTION

Cell migration is critical for both cellular homeostasis and development. It is regulated by a complex signaling network involving coordinated interaction among large array of signaling and cytoskeletal structural proteins[1] [2, 3]. Aberrant cell migration has been shown to be associated with many different pathological conditions including cancer cell metastasis[4]. There has been intensive focus in the recent years to identify critical molecules that enable the invasive migration of cancer cells. In this context, it is of interest to note here that our previous studies have identified a pivotal role for Hax-1 in the migration of neoplastically transformed NIH3T3 cells[5]. Hax-1 was initially identified as an anti-apoptotic protein that interacts with Hematopoetic Cell-specific Lyn Substrate-1 (HCLS1/HS-1) [6]. The observations that HCLS1/HS-1 is a hematopoietic cell-specific homolog of cortactin and HCLS1/HS1 as well as cortactin is critically involved in cell migration [7-9] suggested a role for Hax-1 in cell migration. Subsequent studies from several laboratories including ours have clearly established a crucial role for Hax-1 in cancer cell migration [5, 10-12]. More recently it has been shown that Hax-1 is overexpressed in many cancers and the increased expression of Hax-1 can be correlated with aggressive cancer metastasis[13-20]. Collectively these studies point to a novel, but yet to be resolved role for Hax-1 in tumor cell migration and metastasis.

Our previous studies focused on identifying the role of Hax-1 in invasive cell migration regulated by the oncogenic heterotrimeric G protein, G₁₃, have indicated the possible role of Hax-1 in facilitating the formation of a multi-protein complex consisting of Gα₁₃, cortactin, and Rac1[5]. Several studies including ours have characterized the molecular basis for the interaction of Hax-1 with different proteins including Gα₁₃ and cortactin. However, the structural and functional requirement for Hax-1 in Rac1-cortactin mediated signaling machinery involved in cell migration - especially with reference to cancer cell migration and metastasis - has not been fully understood. The most critical spatiotemporal cytoskeletal events regulated by Rac1 are membrane ruffling[21] and lamellipodia formation[22, 23]. Essentially, Rac1 stimulates the formation of lamellipodia at the leading edges of migrating cells by coordinating F-actin and Arp2/3 interaction[21-24]. A critical mechanism by which Rac1 mediates this process is through the translocation of cortactin to the cell periphery where cortactin promotes the nucleation of Arp2/3-F-Actin interaction as well as the stabilization of the assembled Arp2/3-F-actin network and lamellipodia[7, 9, 25-28]. Thus, the dynamic interaction between Rac1 and cortactin plays a pivotal role in cell migration [9, 29-33]. However, the possible role of any scaffold protein that can modulate the dynamic interaction between Rac1 and cortactin is thus far not clarified. Based on our previous findings that Hax-1 is in complex with Rac1 as well as cortactin, it can be hypothesized that Hax-1 facilitates the interaction between Rac1 and cortactin, thus functioning as a scaffold protein for their interaction. In testing this hypothesis, we report here that Hax-1 shows an increased expression in ovarian cancer cells and silencing of Hax-1 critically impairs the migration of the representative SKOV3 cells in response to LPA. We also show that Hax-1 is required for the interaction between Rac1 and cortactin. Focusing on identifying the domain(s) of Hax-1 required for its interactions with cortactin and Rac1, we demonstrate here that the interaction between Hax-1 and cortactin primarily involves two domains named Hax-D1 and Hax-D3 spanning amino acids 1 to 56 and amino acids 113-168 respectively. A weaker cortactin-interacting domain of Hax-1 (Hax-D4) defined by amino acids 169 to 224. Hax-1 interaction with Rac1 involves two distinct domains of Hax-1 that spans amino acids 57-112 (Hax-D2) and 169-224 (Hax-D4). Our results also indicate that the competitive inhibition of the interaction between endogenous Hax-1 and Rac1 or Hax-1 and cortactin by the ectopic expression of any of these domains led to a decrease in LPA-stimulated migration of ovarian cancer cell line SKOV3. More significantly, the expression of Hax-D4, which shows interaction with both Rac1 and cortactin, acutely inhibited LPA-stimulated colocalization of Rac1 and cortactin thereby attenuating LPA-stimulated migration of these cells. Thus, the results presented here define a critical scaffolding role for Hax-1 in LPA-stimulated Rac1-cortactin interaction and subsequent ovarian cancer cell migration.

RESULTS

Silencing of Hax-1 attenuates LPA-mediated migration of SKOV3 cells.

Our previous studies have shown that Hax-1 is critically required for the invasive cell migration stimulated by the gep protooncogene, Gα₁₃ [5]. Our studies have also demonstrated that LPA-stimulated Gα₁₃ promotes the migration of cancer cell lines including those of ovarian cancer [34, 35]. Therefore, we first sought to investigate whether the expression of Hax-1 is increased in ovarian cancer cells in which Gα₁₃-signaling plays a major role in invasive cell migration. Lysates from a panel of ovarian cancer cells including SKOV3, HeyA8, OVCAR3, 2008, OVCA429 cells and control human ovarian surface epithelial cells (HOSE) were subjected to immunoblot analysis using antibodies specific to Hax-1. Results from such an analysis clearly indicated that the expression of Hax-1 was increased in ovarian cancer cell lines compared to HOSE cells (Figure 1A). The elevated levels of expression of Hax-1 seen in ovarian cancer cells along with its previously established role on cell migration prompted us to investigate the role of Hax-1 in LPA or FBS stimulated migration of ovarian cancer cells. This was carried out using SKOV3 cells in which the expression of Hax-1 was transiently silenced. Two shRNA constructs, sh-Hax #1 and sh-Hax #3 that could efficiently silence Hax-1 were chosen for these analyses (Figure 1B). Equal number of SKOV3 cells (1x10⁶), expressing sh-Hax #1, sh-Hax #3, or scrambled, non-specific shRNA-control RFP vector, were subjected to a standard “wound-healing” assay in the presence of 20 μM LPA, or 10% FBS along with appropriate controls. The results indicated that the silencing of Hax-1 drastically inhibited LPA- or serum-stimulated migration of SKOV3 cells compared to the control cells (sh-NS) expressing scrambled shRNA (Figure 1C). To test the role of Hax-1 in LPA- or serum-stimulated invasive migration of these cells, we monitored the migration of Hax-1-silenced SKOV3 cells using a Collagen I-coated TransWell invasion assay. Similar to the results obtained from the wound-healing assay, LPA- as well as FBS-stimulated invasive migration of ovarian cancer cells was significantly attenuated by the silencing of Hax-1 (Figure 2 A, B). Together, these data establish a dominant role for Hax-1 in LPA stimulated invasive migration of ovarian cancer cells.

Silencing of Hax-1 disrupts Rac1-cortactin interaction and localization

Our previous studies have indicated that Hax-1 is part of a signaling complex consisting of Gα₁₃, cortactin, and Rac1[5]. It is well established that Rac1 plays a critical role in cell migration through its interaction with cortactin [8, 9, 36]. Upon stimulation by serum or specific ligands, it has been observed that Rac1 interacts with cortactin and the resultant Rac1-cortactin complex translocates to the leading edges of migrating cells to stabilize Arp2/3-actin nucleation complex involved in lamellipodia formation [9, 26, 28]. Based on our previous finding that, Hax-1 exists in a complex with Rac1 as well as cortactin, both of which coimmunoprecipitate with Hax-1, it can be reasoned that Hax-1 is involved in promoting Rac1-cortactin interaction. To verify such a role for Hax-1, we examined the colocalization of Rac1 and cortactin in Hax-1-silenced SKOV3 cells using immunofluorescence analysis. As shown in Figure 3A, a robust interaction between Rac1 and cortactin could be seen in control SKOV3 cells (sh-NS). Whereas, cells in which Hax-1 was silenced exhibited a significantly reduced colocalization of Rac and cortactin (Figure 3A). Quantification of colocalization substantiated this further (Figure 3C). We also carried out coimmunoprecipitation analysis using the lysates from these cells, to test whether the silencing of Hax-1 leads to a reduction in the physical association between Rac1 and cortactin. As shown in Figure 3D, the levels of Rac1 coimmunoprecipitated with cortactin were greatly reduced in lysates from Hax-1-silenced SKOV3 cells compared to the control cells. Similarly, the levels of cortactin coimmunoprecipitated with Rac1 were reduced in Hax-1 silenced cells. The observation that the expression levels of Rac1 and cortactin remained unchanged with the silencing of Hax-1 indicated that the reduced levels of coimmunoprecipitated Rac1 and cortactin were not due to changes in the expression levels of either of these proteins. Together, these results (Figure 3A-C) demonstrate a novel role for Hax-1 in facilitating the interaction between Rac1 and cortactin.

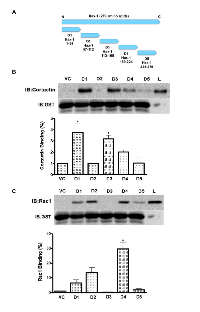

Hax-1 interacts with cortactin and Rac1 via distinct regions

The observation that the silencing of Hax-1 led to a reduction in the levels of colocalized Rac1 and cortactin underscored the need to define the interaction of Hax-1 with these proteins further. Our previous studies have shown that the immunoprecipitation of an epitope-tagged full-length Hax-1 brings down both cortactin and Rac1[5]. Therefore, we carried out studies to identify the domains of Hax-1 involved in the interaction with cortactin and Rac1 using a GST-fusion protein pull-down assay strategy. A sequential series of cDNA inserts encoding fifty-six amino acids of Hax-1 (Figure 4A) were ligated to a cDNA insert encoding GST protein by PCR methods and were utilized for the expression of GST-fused domains of Hax-1 in E. coli. GST-Hax-1-Sepharose beads generated from these constructs (Figure 4A), namely Hax-D1 (amino acids 1-56), Hax-D2 (amino acids 57-112), Hax-D3 (amino acids 113-168), Hax-D4 (amino acids 169-224), and Hax-D5 (amino acids 225-279), were used to pull down cortactin or Rac1 from the lysates prepared from SKOV3 cells. As shown in Figure 4B, two major cortactin-interaction domains of Hax-1 could be mapped to amino acids 1-56 (Hax-D1) and 113-168 (Hax-D3). In addition, a much weaker interaction site was mapped to a site spanning amino acids 169-279 (Hax-D4). Analyses of GST-Hax-1-Rac1 interactions indicated that the major interaction sites for Rac1 were amino acids 57-112 (Hax-D2) and 169-224 (Hax-D4). Relatively weaker interaction sites for Rac1 could be mapped to other regions of Hax-1 spanning amino acids 1-56 (Hax-D1) and 225-279 (Hax-D5) (Figure 4C). Thus, the results presented here identifies for the first time that Hax-1 interacts with cortactin and Rac1 via specific as well as overlapping domains.

Expression of Cortactin- and Rac1-interacting domains inhibits the migration of SKOV3 Cells

Results from the in vitro binding assays described above indicate that Hax-1 interacts with both Rac1 and cortactin through non-overlapping as well as overlapping domains. Therefore, it can be reasoned that Hax-1 brings together Rac1 and cortactin through this interaction during cell migration. In such an event, the expression of cortactin- or Rac1-interacting Hax-1-domain would inhibit cell migration by competing with the endogenous Hax-1 in its interaction with cortactin and/or Rac1. To investigate, we analyzed the migratory potential of SKOV3 cells expressing the different Hax-1 domains. As shown in Figure 5, expression of these domains blunted the migratory potential of SKOV3 cells by varying levels (Figure 5A, 5B). However, more pronounced inhibitory effect on cell migration was observed with the expression of the Hax-D4. The inhibitory effects of Hax-D4 on migration were quantified to be > 75% (Figure 5A, 5B). We confirmed the equal expression of the HA-tagged Hax-1 domains by immunostaining (Figure 5C) and immunoblotting for the HA-epitope along with appropriate quantification (Figure 5D).

Hax-D4 Domain Potently Inhibits Rac1-cortactin Interaction.

It is well established that the interaction of Rac1 with cortactin is an early event in lamellipodia formation [9, 37]. Therefore, we investigated whether the ectopic expression of the distinct domains of Hax-1 would inhibit such interaction. SKOV3 cells transfected with vectors encoding different domains of Hax-1 were subjected to immunofluoresence analysis for the presence of Rac1 and cortactin. The extent of colocalization of Rac1 and cortactin did not show a significant change in cells expressing Hax-D1, Hax-D2, Hax-D3, or Hax-D5-domains of Hax-1 compared to the vector control cells (VC). However, cells expressing Hax-D4 showed a significant reduction (> 30%) in the colocalization of cortactin and Rac1 (Figure 6A & B).

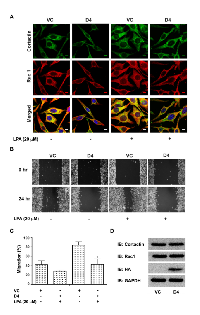

Hax-D4 domain inhibits LPA-stimulated Rac1-cortactin interaction and cell migration.

Previous studies have shown that lysophosphatidic acid (LPA) plays a major role in ovarian cancer pathobiology by promoting the invasive migration of ovarian cancer cells [34, 38-43]. Therefore, it can be predicted that LPA-stimulated migration involves Hax-1 mediated complex formation involving Rac1 and cortactin. To test, we monitored whether LPA stimulates the interaction between Rac1 and cortactin and if so, whether the expression of Rac1/Cortactin-interacting Hax-D4 would abrogate such LPA-mediated Rac1-cortactin association. SKOV3 cells transfected with control vector (VC) or vector encoding Hax-D4 were serum-starved for 16 hours, following which they were stimulated with 20 μM LPA for 24 hours. The transfectants were subjected to immunofluorescence imaging by probing them with antibodies specific to Rac1 or cortactin along with specific fluorophore-tagged second antibodies. Results from such analyses indicated that the cells stimulated with LPA showed an increase in Rac1-cortactin complexes, indicated by their broad colocalization (Figure 7A). More interestingly, the expression of the Hax-D4 drastically inhibited such complex formation stimulated by LPA (Figure 7A).

Based on the observation that Hax-D4 inhibits LPA-stimulated Rac1-cortactin colocalization, it can be predicted that the Hax-4 would inhibit LPA-stimulated migration. To test, SKOV3 cells (1x10⁶) expressing the control vector or Hax-D4 were subjected to a cell migration assay in the presence of 20 μM LPA along with appropriate controls. Results from such analysis indicated that while LPA stimulated the migration of vector control SKOV3 cells, the expression of Hax-D4- drastically inhibited the migration of SKOV3 cells in response to LPA (Figure 7B). To make sure that the observed inhibitory effect on Rac1-cortactin colocalization and cell migration is not due to an altered expression of Rac1 or cortactin, their expression profiles were monitored along with that of the ectopically expressed Hax-D4 (Figure 7C). Together with the findings that Hax-D4 can interact with both Rac1 and cortactin (albeit weakly), these results indicate that Hax-D4 disrupts LPA-stimulated Rac1-cortactin colocalization and cell migration by competitively inhibiting the interaction of Hax-1 with Rac1 and cortactin.

DISCUSSION

Hax-1 was initially identified as HS-1 or HCLS1– interacting protein in a yeast two hybrid screen. Subsequent studies have identified its interaction with many different proteins involved in different cellular responses such as cell survival, anti-apoptosis, and cell migration. Recently, it has also been observed that the homozygous mutations in Hax-1 gene or loss of Hax-1 are associated with severe congenital neutropenia and neurodevelopmental disorders. In addition, overexpression of Hax-1 has been observed in tissues from esophageal, lung and colon cancers [13, 14, 17, 20]. More significantly, in colorectal cancer the increased expression of Hax-1 correlates with the lymph node metastasis and poor prognosis of the patients[13]. While all these studies point to a determinant role for Hax-1 in critical signaling pathways involved in cell growth, differentiation, apoptosis, tumorigenesis and tumor cell migration, the functional role played by Hax-1 in these diverse cellular responses are far from clear.

The findings that Hax-1 interacts with HS1 and cortactin[6] that are involved in cell migration[6, 7, 27, 44, 45] provided the initial evidence that Hax-1 could be involved in cell migration. In this context, our previous observation that Hax-1 is required for the migration of NIH3T3 cells stimulated by the activated, oncogenic mutant of Gα₁₃ is highly significant. These studies suggested that Gα₁₃, upon activation by its cognate receptor(s), associates with Hax-1 in a complex containing Hax-1, Rac1 and cortactin. Based on these findings, we proposed that Hax-1 could provide a physical conduit for transmitting the signals from the oncogenic G protein to cellular cytoskeletal machinery through its interactions with cortactin. While the structural basis for the association of Hax-1 with Gα₁₃ and cortactin is well characterized, such an understanding has been lacking for the interaction between Hax-1 and Rac1. It has also remained unclear whether the interaction of Hax-1 with Rac1 would have any bearing on the Rac1-cortactin interaction involved in cytoskeletal changes associated with cell migration. Results from our studies presented here attempts to clarify these points in addition to providing novel insights into the role of Hax-1 in cell migration. We demonstrate here that the expression of Hax-1 is highly elevated in a panel of ovarian cancer cells and the silencing of Hax-1 inhibited basal as well as serum- or LPA-stimulated migration by more than 50%. The inhibition was more acutely observed when invasive migration of SKOV3 cells in which Hax-1 was silenced was monitored using collagen I coated TransWell invasion assay. Although a role for Hax-1 in metastasis has been speculated based on its expression profile in metastatic cells [13, 14, 17, 20], the results presented here provide the first evidence that Hax-1 is critically required for the invasive migration of an ovarian carcinoma cell line in response to both LPA and serum growth factors. In light of the findings that LPA plays a dominant role in ovarian cancer cell migration, the observation that LPA-stimulated migration requires Hax-1 is quite significant.

It should be noted here that the studies carried out in several laboratories, including ours, have established Hax-1 as a non-enzymatic protein that interacts with multiple protein partners in different cellular or physiological contexts. Thus, it appears that Hax-1 behaves more like a scaffold protein involved in the nucleation of different multi-protein complexes in a cellular or physiological context specific manner. Our interrogation of Hax-1 based on this reasoning clearly substantiates such a view. Results from coimmunoprecipitation analyses clearly indicate that Hax-1 is required for the physical association between Rac1 and cortactin. This is further supported by the in vivo colocalization analysis in which the silencing of Hax-1 drastically reduces the colocalization of Rac1 and Hax-1. Next, our analysis of Hax-1 domains involved in its interactions with Rac1 and cortactin clearly indicates that the primary domains of Hax-1 involved in its interactions with Rac1 and cortactin are different. Our studies on mapping the cortactin-interacting sites of Hax-1 further refines this, by indicating that the cortactin-interacting sites of Hax-1 are interspersed in the N-terminus. Two primary cortactin-interacting sites span amino acids 1-56 (Hax-D1) and 113-168 (Hax-D3). In addition, Hax-D4 domain defined by amino acids 169-224 shows a weaker interaction with cortactin. The weaker interaction of Hax-D4 with cortactin could be due to the possibility that the cortactin-interacting site of Hax-1 extends beyond Hax-D3 and into the contiguous sequences of Hax-D4. In the case of Rac1 interaction, the primary sites through which Hax-1 interacts with Rac1 involve amino acids 57-112 (Hax-D2) and 169-224 (Hax-D4). Although the folding of these domains in relation to the tertiary structure of Hax-1 is not known at present, the non-overlapping sites (Rac1-specific Hax-D2 and cortactin-specific Hax-D3) involved in cortactin and Rac1 interaction suggest the interesting possibility that Hax-1 can interact with both the molecules using different domains so that they are brought into close proximity with each other for functional interaction. Further analyses using shorter deletion constructs or mutational scanning should provide more details on Rac1- and cortactin-specific domains of Hax-1.

It can be anticipated that the ectopic expression of Hax-1-domains that interact with either cortactin or Rac1, would inhibit cell migration by competitively inhibiting the interaction of endogenous Hax-1 with cortactin and/or Rac1. This view is substantiated by our studies in which the expression of cortactin- as well as Rac-interacting Hax-1-domains inhibited the migration of SKOV3 cells at varying extents. However, more potent inhibition of cell migration was observed with the expression of Hax-D4. When these domains were analyzed for their effect on Rac1-cortactin colocalization, only Hax-D4 was observed to acutely inhibit the colocalization. The inhibitory effect seen only with Hax-D4 could be due to the ability of Hax-D4 to interact with both Rac1 and cortactin. Although Hax-D4 shows a weaker interaction with cortactin compared to Rac1, it is likely that Hax-D4, through its bivalent interaction, competitively and effectively sequesters both Rac1 and cortactin, thus preventing them from interacting with each other. The fact that the observed inhibitory effects of Hax-D4 are quite similar to the effects seen with the silencing of Hax-1 (Fig. 1C), strongly supports the conclusion that the primary function of Hax-1 in cell migration is to facilitate the interaction of cortactin and Rac1 as a scaffolding protein. Taken together with our previous observations that LPA-stimulated migration of ovarian cancer cells require Gα₁₃-regulated Rac-activation [34, 46] and activated Gα₁₃ promotes the formation of a Hax-1-Rac1-cortactin signaling complex [5], the present observation that Hax-1 is required for Rac1-Cortactin interaction establish a critical role for Hax-1 in scaffolding the interaction between Rac1 and cortactin (Fig. 8). At present, it is not clear whether Hax-1 is required only for the nucleation of Rac1-cortactin interaction or if it is also required for the subsequent steps in cell migration including Rac1-mediated translocation of cortactin to lamellipodia and Rac1-cortactin-mediated stabilization of actin polymerization in lamellipodia. However, these speculated roles for Hax-1 need not be mutually exclusive. Further studies should define the processive events involving Hax-1, Rac1, cortactin and other binding partners during cell migration and metastasis. In summary, our results conclusively establish for the first time that Hax-1 is critically required for the Rac1-cortactin interaction and subsequent invasive migration of ovarian cancer cells.

METHODS

Cell culture and transfections

HOSE, SKOV3, HEYA8, OVCAR3, 2008, and OVCA429 ovarian cancer cells were cultured and maintained in Dulbecco’s modified Eagle’s Medium (DMEM) (Cellgro, Manassas, VA), containing 10% Fetal Bovine Serum (Gemini Bio-Products, West Sacramento, CA), 50 units/mL Penicillin, and 50 µg/mL Streptomycin at 37°C in a 5% CO2 incubator as described previously[34, 46, 47]. LPA was obtained from Avanti Polar Lipids (Alabaster, AL) and was dissolved to 20 mM stock solutions in sterile water and stored at -20°C. All transfections were carried out using Amaxa Biosystems Nucleofector II according to the instructions of the manufacturer.

pRFP-c-RS shRNA constructs against HAX-1

pRFP-C-RS scrambled control shRNA construct (TR30015) and eight pRFP-C-RS shRNA constructs (TF312515) against HAX-1 with Chloramphenicol and Puromycin resistance markers were purchased from OriGene Technologies, Inc., Rockville, MD. The Hax-1 silencing efficiency of all the constructs were tested in SKOV3 cells and two shRNA constructs with efficient and target specific silencing (denoted by sh-Hax #1 and sh-Hax #3) were utilized for the experimental studies.

pGEX 5X-1 GST D1-D5 constructs

GST fusion constructs encoding a sequential set of 56 amino acid domains from the N-terminus termed D1, D2, D3, D4, and D5, were constructed using a pGEX 5x-1 (Invitrogen) vector. Hax domains D1 to D5 were PCR amplified from pcDNA3.1 (+) full length Hemagglutinin-tagged-Hax-1 (HA-Hax-1) vector with primers containing appropriate restriction sites for cloning. While D1 was PCR amplified to contain EcoRI and Sal I restriction sites, D2 – D4 were amplified along with engineered EcoRI and XhoI sites. The forward primers for D1 (amino acids 1-56), D2 (amino acids 57-112), D3 (amino acids 113-168), D4 (amino acids 169-224) and D5 (amino acids 225-279) were cggaattcaccatgagcctctttgatctcttcc, c g g a a t t c a c c a t g c c c c c t g a g g a a t t t g g c , c g g a a t t c a c c a t g g a g a c a c c t g g t g a g a g a c , c g g a a t t c a c c a t g t t t g a t g a t g t a t g g c c t a t g and cggaattcaccatggagcgccggactgtggtg respectively. The reverse primers included acgcgt cgacctagtgctgaggactatggaac for D1, ccgctcgagctatgactcaggacctggaag for D2, ccgctcgagctacct atgaaatggcctctgg for D3, ccgctcgagctactccactatcccatctgg for D4 and ccgctcgagctaccgggaccg gaaccaacg for D5 respectively. The PCR products were gel-purified (1.5%), and cloned into the pGEX 5X-1 vector using EcoRI-Sal I sites for D1 and EcoRI-Xho I sites for D2-D5 of Hax-1 domains.

pcDNA 3.1 (+) HA-Hax-1-D1-D5 constructs

For the construction of pcDNA3.1 (+) HA-Hax-1-D1 to D5 plasmids, 56 amino acid domains of Hax-1 were PCR amplified with primers containing RE sites for EcoRI and BamHI. Each of these constructs was engineered with a unique restriction site to distinguish from each other. The forward and reverse primers for D1 (amino acids 1-56) were cggaattcagcctctttgatctcttcc and acgcggatcccccgggctagtgctgaggactatggaac respectively, and contained SmaI (cccggg) as a unique restriction enzyme site. D2 (amino acids 57-112) contained Sal I (gtcgac) as a unique RE site, and had forward primer cggaattcccccctgaggaatttggc and reverse primer ccgggatccgtcgacctatgactcaggacctggaag for amplification. D3 (amino acids 113-168) construct was made using cggaattcgagacacctggtgagagac as a forward primer and ccgggatccctgcagctacct atgaaatggcctctgg as reverse primers with PstI (ctgcag) RE. D4 (amino acids 169-224 amino acids) was cloned out with cggaattctttgatgatgtatggcctatg forward primer and ccgggatccgagctcctactc cactatcccatctgg as reverse primer along with SacI (gagctc) as an identification site. Hax-1 D5 (amino acids 225-279) was PCR-amplified using cggaattcgagcgccggactgtggtg as forward primer and the ccgggatccagtactctaccgggaccggaaccaacg as reverse primer. The reverse primer for Hax-1 D5 included ScaI (ctcgag) as a unique identification site. The PCR products were gel purified (1.5% agarose gel) and cloned into the pcDNA 3.1(+) HA vector (Invitrogen).

GST pull down Assay

The GST fusion proteins (GST-Hax-1-D1-D5) and the respective GST-fusion protein bound glutathione Sepharose 4B beads (GE Health Care) were prepared following previously published methods [48]. For the pull down assay, SKOV3 cells were lysed in a GST-lysis buffer containing 150 mM NaCl, 20 mM Tris (pH 8.0), 1mM MgCl₂, 0.1% NP40, 10% glycerol incubated with the GST fusion protein domains D1-D5 of Hax-1 for 4 hours at 4º C, washed five times, and eluted in SDS sample loading buffer for analysis by western blotting.

Confocal Microscopy

24 hours after transfection with the required constructs, 2 x 10⁵ transfectants were plated on to coverslips, fixed with 3% paraformaldehyde in PBS for 10 minutes, permeabilized with 0.1% Triton-X-buffer for 10 minutes and blocked for 30 minutes with ice cold 0.1% BSA in PBS. Sequential immunostaining was carried out with primary mouse monoclonal Rac1 (1:200) antibody for 1h, washed, incubated either with secondary Alexa 647-conjugated goat anti-mouse IgG (1:200) or Alexa 568-conjugated goat anti-mouse IgG for 1h, washed and then stained with Alexa 488-conjugated anti-mouse Cortactin (Millipore, MA) antibody for 1h. Nuclei were counter stained with DAPI (diamidino-2-phenylindole, 1µg/mL) for 5 minutes and washed finally with PBS. The coverslips were mounted on glass slides with 10 µl of Prolong Antifade reagent (Molecular Probes, Eugene, OR) and were analyzed with a Leica SP2 confocal microscope.

HA-epitope immunostaining in SKOV3 cells transfected with HA-tagged proteins was carried out using Alexa 647-conjugated mouse HA (Cell signaling, MA) antibody for 1h, counter stained with DAPI, mounted and analyzed as described above.

Transfection efficiency in the Hax-1 shRNA RFP construct transfected cells was determined after fixation with 3% paraformaldehyde, permeabilization with 0.1% Triton-X buffer and counter staining with DAPI. The coverslips were mounted as described above and micrographs were collected with a Nikon microscope. NIH ImageJ software was used to count the number of transfected cells.

All colocalization analyses were carried out using the JACoP (Just Another Colocalization Plugin) of NIH ImageJ software.

Migration Assays

In vitro wound healing assay : The wound healing assay was carried out as described previously by our group [34]. 5 x 10⁵ cells were seeded into 60 mm culture dishes in 10 % FBS media and allowed to adhere overnight. Cells were then washed three times with PBS and incubated in serum-deprived media for 24 hours. A linear scratch wound was made across the cell monolayer using the sharp end of a 200 µL sterile pipette tip (Sarstedt, Newton NC). The cells were washed with serum-free media to remove cellular debris. Fields of view (at 100 X magnification) were selected at random along the linear wounds and imaged using an Olympus CK40 microscope and Kodak DC290 camera system. The photographed fields were marked with a felt tip marker to allow re-identification at the next time-point. The cells were then incubated with serum-free media containing 20 µM LPA, or serum-free media alone for the control. After 24 hours incubation, the fields of view were identified and re-imaged.

Transwell migration assay: Cell migration was monitored using a transwell chamber assay as previously described [5, 34]. Cell culture inserts (polyethylene terephthalate membrane with 8.0 µm pores #353097, BD Biosciences, Franklin Lakes, NJ) were coated with rat-tail collagen, type 1 (BD Biosciences). 4 x 10⁵ cells in 200 µL serum-free media were placed in the well of the companion plate. The companion plate wells contained 500 L of control serum-free media and serum-free media with 20 µM LPA or 10 % FBS. The cells were incubated for 20 hours and the non-migrating cells on the proximal side of the inserts were removed with a cotton swab. The migrated cells on the distal side of the insert were fixed and stained with Hemacolor (EMD Chemicals, Inc., Gibbstown, NJ). The number of migrated cells was then enumerated with the images obtained from random fields of view at 10X magnification.

Immunoprecipitation and Immunoblot analysis

Antibodies to cortactin (16-228) and Rac1 (05-389) were from Millipore (MA) whereas antibodies to hemagglutinin epitope (2362) and Hax-1 (H65220) were from Cell Signaling (Beverly, MA) and BD Biosciences (San Jose, CA), respectively. GAPDH antibody was from Ambion (4300). Peroxidase-conjugated anti-rabbit IgG (W401B and anti-mouse IgG (NA931V) were purchased from Promega (Madison, WI). 1mg of the lysate protein of the experimental groups were subjected to immunoprecipitation using the Rac1 or cortactin antibodies. The immunoprecipitates were resolved by 10% or 15% SDS-PAGE gels, and immunoblot analyses were carried out according to our previously published methods [5, 34, 49]. The blots were developed using Western Lightning Chemiluminescence Reagent (Perkin Elmer, Boston MA) and imaged using Kodak Image Station 4000 MM. Quantification of immunoblots was performed using Carestream Molecular Imaging Software version 5 (Rochester, NY) and the respective values were imported into Graph Pad Prism (La Jolla, CA) for graphing and statistical analysis.

Competing interests

The authors declare that they have no competing interests

ACKNOWLEDGEMENTS

This work was supported by grants from the National Institutes of Health (CA116984, CA123233). We thank the Peggy and Charles Stephenson Cancer Center at the University of Oklahoma, Oklahoma City, OK and an Institutional Development Award (IDeA) from the National Institute of General Medical Sciences of the National Institutes of Health under grant number P20 GM103639 for the use of Histology and Immunochemistry Core, which provided immunostaining service. OUHSC Flow Cytometry and Imaging Core is acknowledged for the use of confocal and epifluorescence microscopy.

Abbreviations

Hax-1 HS1-associated protein X-1 HS1 Hematopoietic cell Specific protein 1 HCLS1 Hematopoetic Cell-specific Lyn Substrate-1 (HCLS1/HS-1)

FBS Fetal Bovine Serum LPA Lysophosphatidic acid RFP Red fluorescent protein
